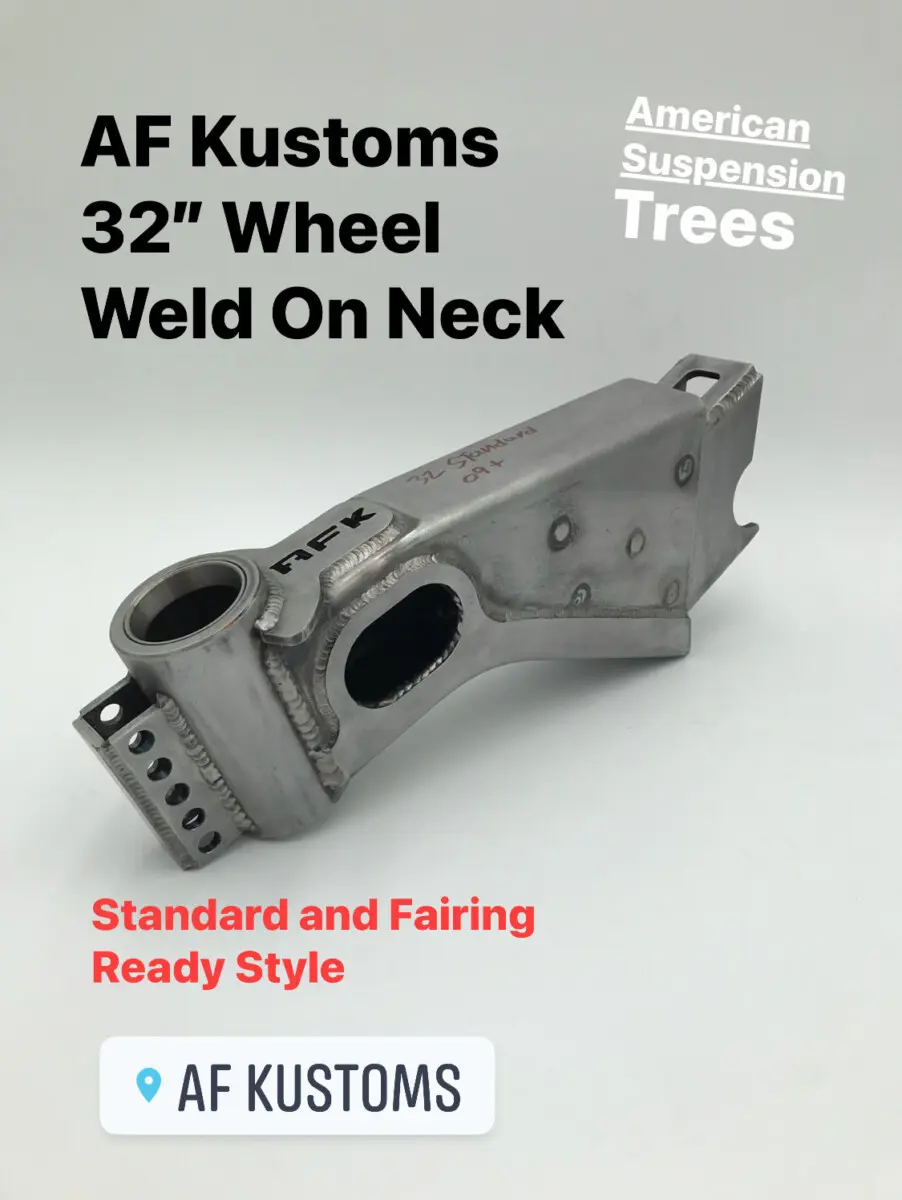

Our 32″ wheel weld on neck is designed around American Suspension 30/32 rake trees. Its made from 10ga. 1018 cold rool streel and tig welded inside and out for a superior strength and style. With this neck you will recieve the weld on neck, both top and bottom bearing race cups, cut template and a frame doubler plate. The doubler plate is something extra that we give to those that want to run thier wires through the frame. Weld the doubler in your desired location under the tank and cut open the hole. The doubler plate adds strength to the cut edge of the new wire hole. With the combination of our neck, American Suspension trees and front air ride this setup will produce a nice level bike with 3″ of ground clearance aired down.
32 Standard 14 1/2″ Long X 4″ Wide X 6 5/8″ Tall (11 LBS 14.8 OZ)
Note: This neck does not come with trees. trees sold separately.
Neck fitment and welding should be done by a professional/expert in the
To achieve 3″ ground clearance rear air ride is required and is not supplied.
When purchasing American Suspension Trees the 3″ fork leg end caps are
Product normally ships within 3 business days
